6210 Series Blower Door Package | 2 Fan High Performance

Product code: 6210

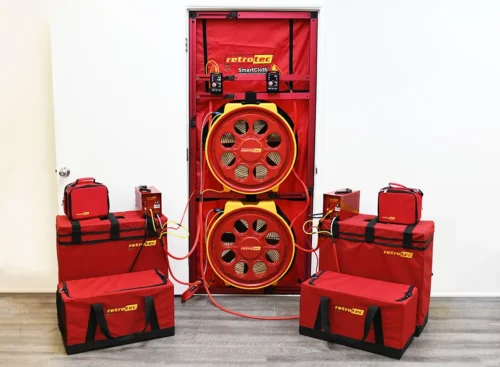

Model 6210

Price range: $13,275.00 through $14,280.00

Voltage

Calibration

Clear

Software Options *

Training - Residential/Commercial

Optional 5 Year Extended Warranty

Overview Features
Included Items
Tech Specs
Manuals & Guides

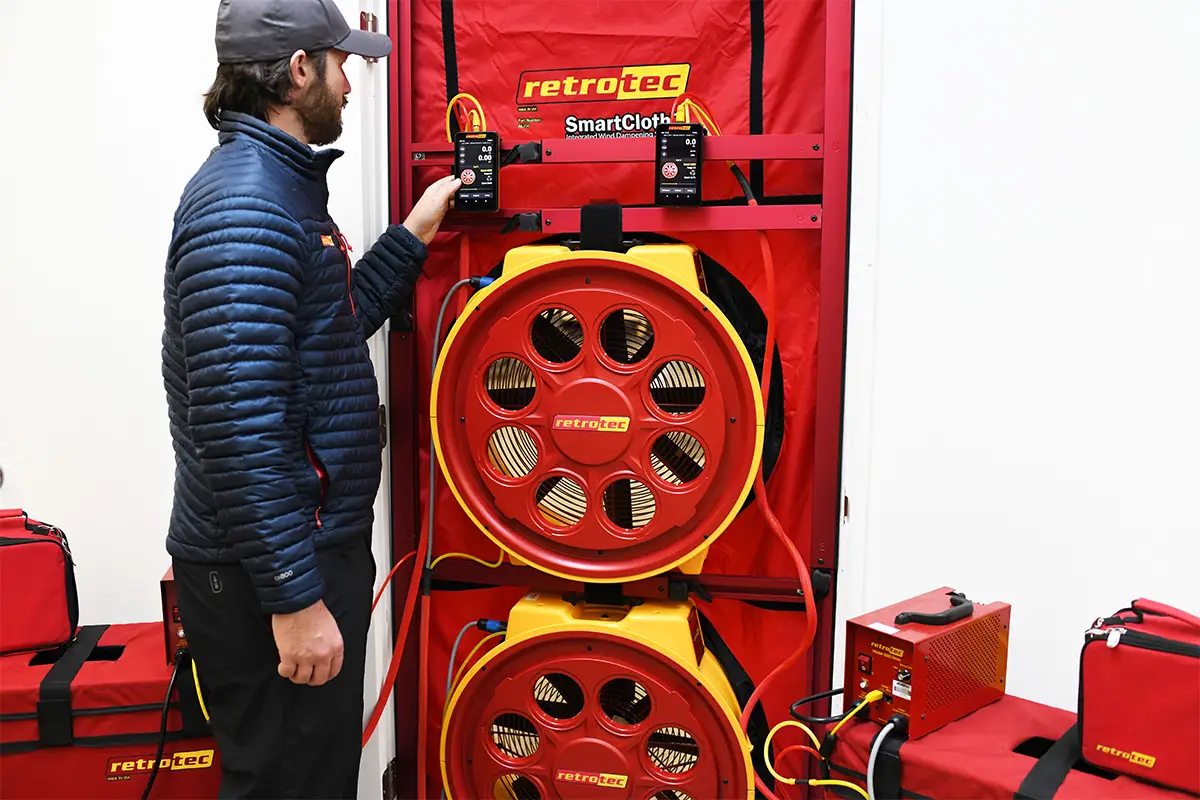

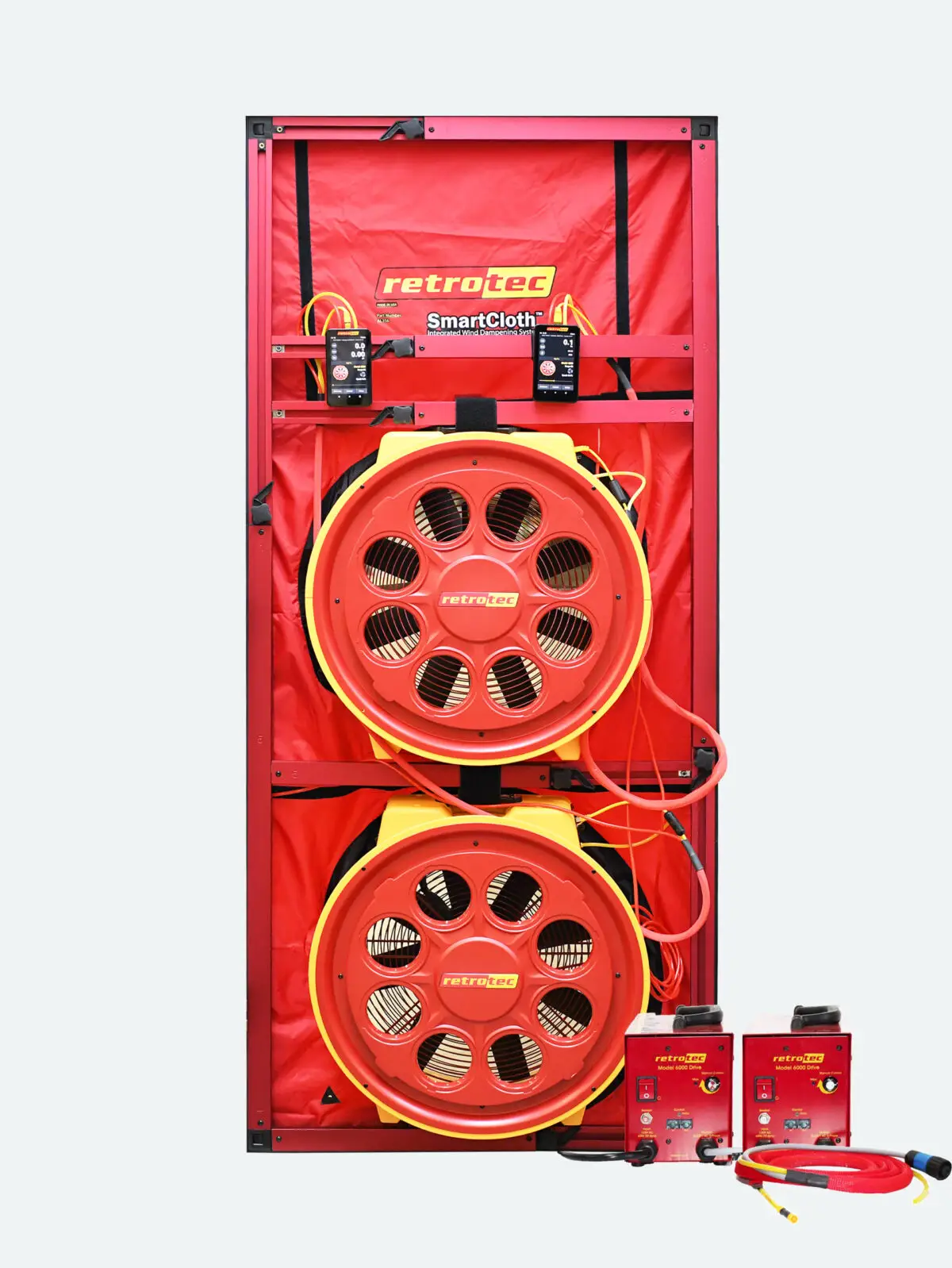

High-Performance Double Hi-Power Blower Door System

Retrotec’s Model 6210 Blower Door System delivers powerful performance with two high-output fans, producing an impressive 16,200 CFM of airflow. Designed to handle a wide range of testing applications, this system will be able to handle most of your testing needs – from small commercial buildings to an entire floor in a multi-family apartment building. All while offering a faster and more efficient setup compared to systems using three standard-power fans.

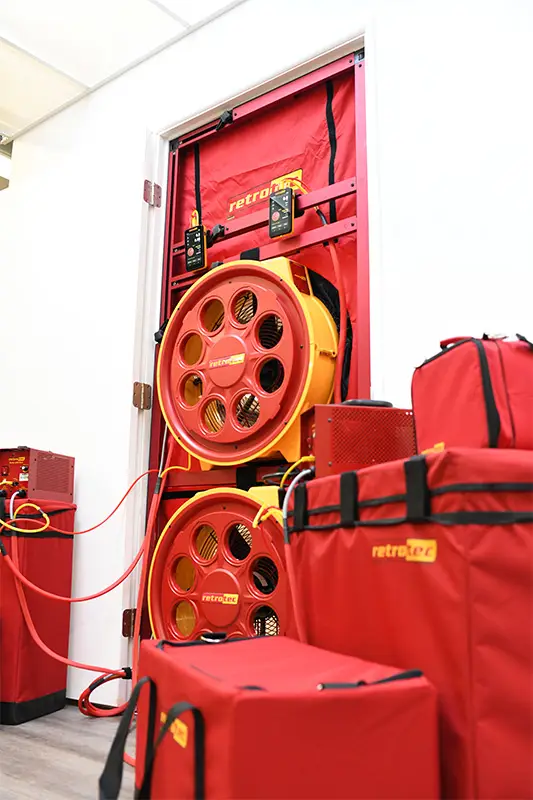

This system features a larger, easy-to-install aluminum frame door panel that adjusts to fit oversized doorways. Extra crossbars provide added stability, ensuring the frame remains secure even under high test pressures.

Who Uses the Model 6200?

Energy auditors, HVAC contractors, building contractors, remodelers, and home inspectors rely on this system for airtightness testing in larger residential and commercial applications. The Model 6200 is a high-performance solution for professionals who require a powerful yet streamlined blower door system for mid-to-large-scale building testing.

2 x 6000 Series Fan Set

6000 Series Calibrated Fan
(120V/60Hz, 240V/50Hz, or 110V/50Hz)
High Power Drive
(120V/60Hz, 240V/50Hz, or 110V/50Hz)
Range Ring A
B8 Plate
8 x Blank Range Plugs
Blower Door Tubing Kit
Tubing Umbilical
Fan Cover
Power Cord
System Calibration Verification Report

1 x SmartCloth™ Door Panel & Frame – Double Fan

Double Fan Large SmartCloth™ Wind Dampening Cloth Door
Large SmartCloth™ Wind Dampening Cloth Door
Large Aluminum Frame, Etched with Sizing Markings
Traveling Case

2 x DM32X Gauge Package

DM32X Gauge
Gauge Case
USB-C Charging Cable
Cat5 Cable
ISO17025 calibration of DM32X
Gauge Calibration Verification Report

2 x Fan Case

2 x System Accessories Case

Model 6000 Fan
	Flow Into:	CFM	Litres/sec	M3/h
Max Flow, per fan (60 Hz) Reduces values by 15% for 50Hz fan	Free Air	8,100	3,823	13,762
	50 Pa	7,700	3,634	13,082
	75 Pa	7,400	3,492	12,573
Minimum Flow:
on Included Range B1	50 Pa	95	49	161
on Optional Range 74	50 Pa	37	17	63
on Optional Range 47	50 Pa	21	10	35
on Optional Range 29	50 Pa	9	4	15
Dimensions:	22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height
Weight:	33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed
Flow Accuracy:	+/-5%
Power:	120V@60hz/22.0A or 240V@50hz/10.9A or 110V@50Hz/22.0A
Recommended Fan Calibration Interval:	5 years
Digital Gauge Model:	DM32X (Click Here)
