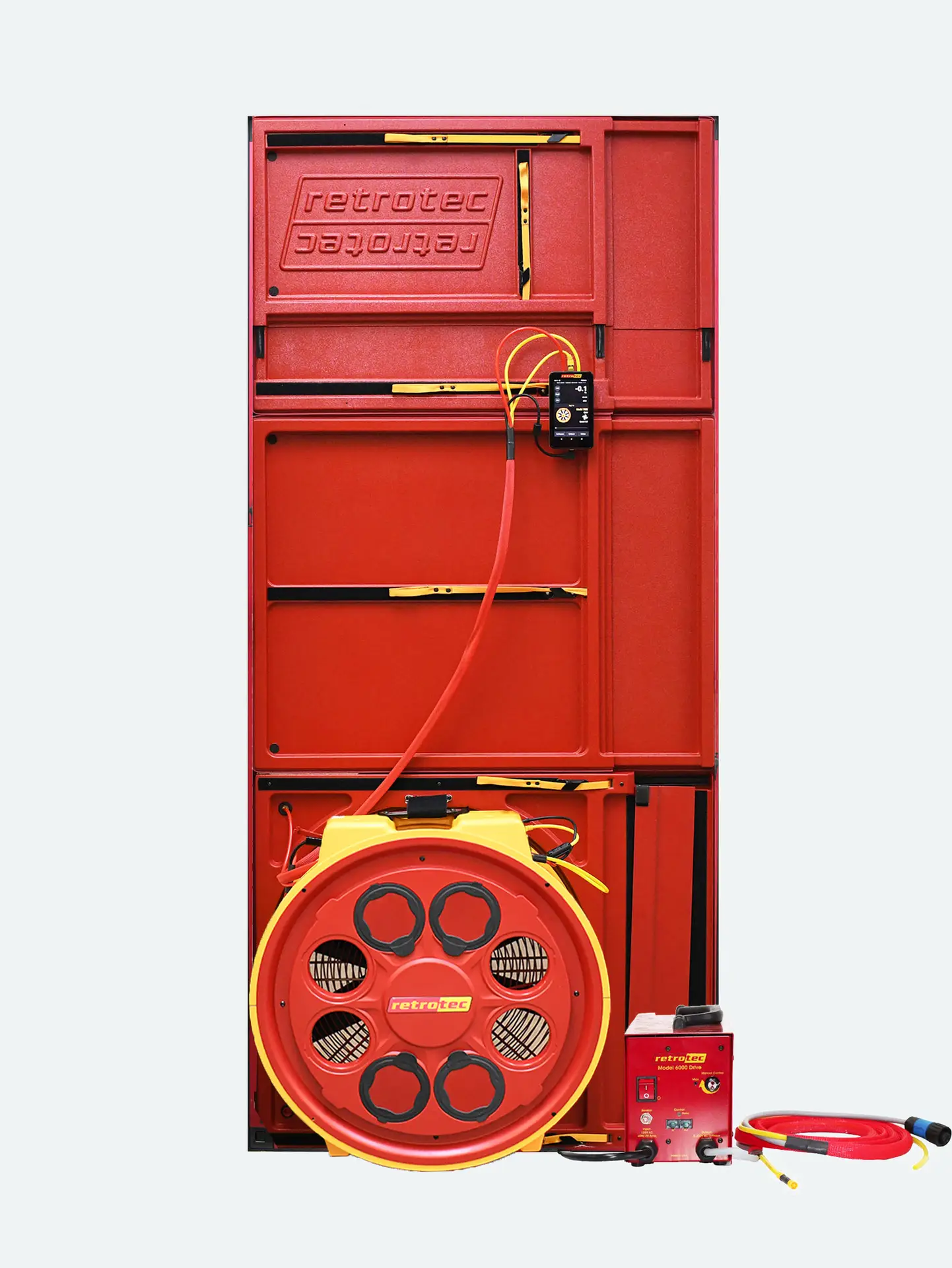

A Powerful Blower Door System for Demanding Applications

Retrotec’s 6100 Blower Door System is the ultimate solution for testing a wide range of enclosures, from super leaky warehouses to ultra-tight commercial buildings. This high-powered system delivers double the power of the Model 5100, making it the go-to choice for demanding environments. It comes complete with everything you need: the advanced DM32X gauge, a high-output fan with six standard and three optional low-flow ranges, durable fan shell, connectors, software, and sturdy cases—all backed by Retrotec’s industry-leading 10-year warranty.

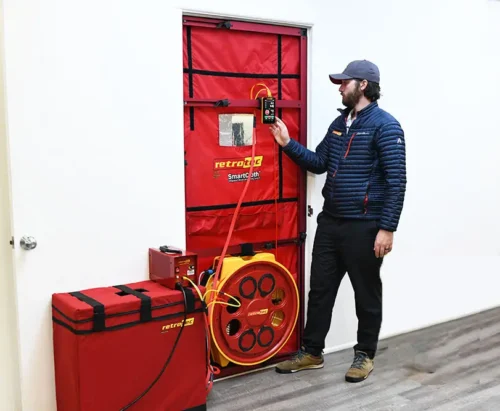

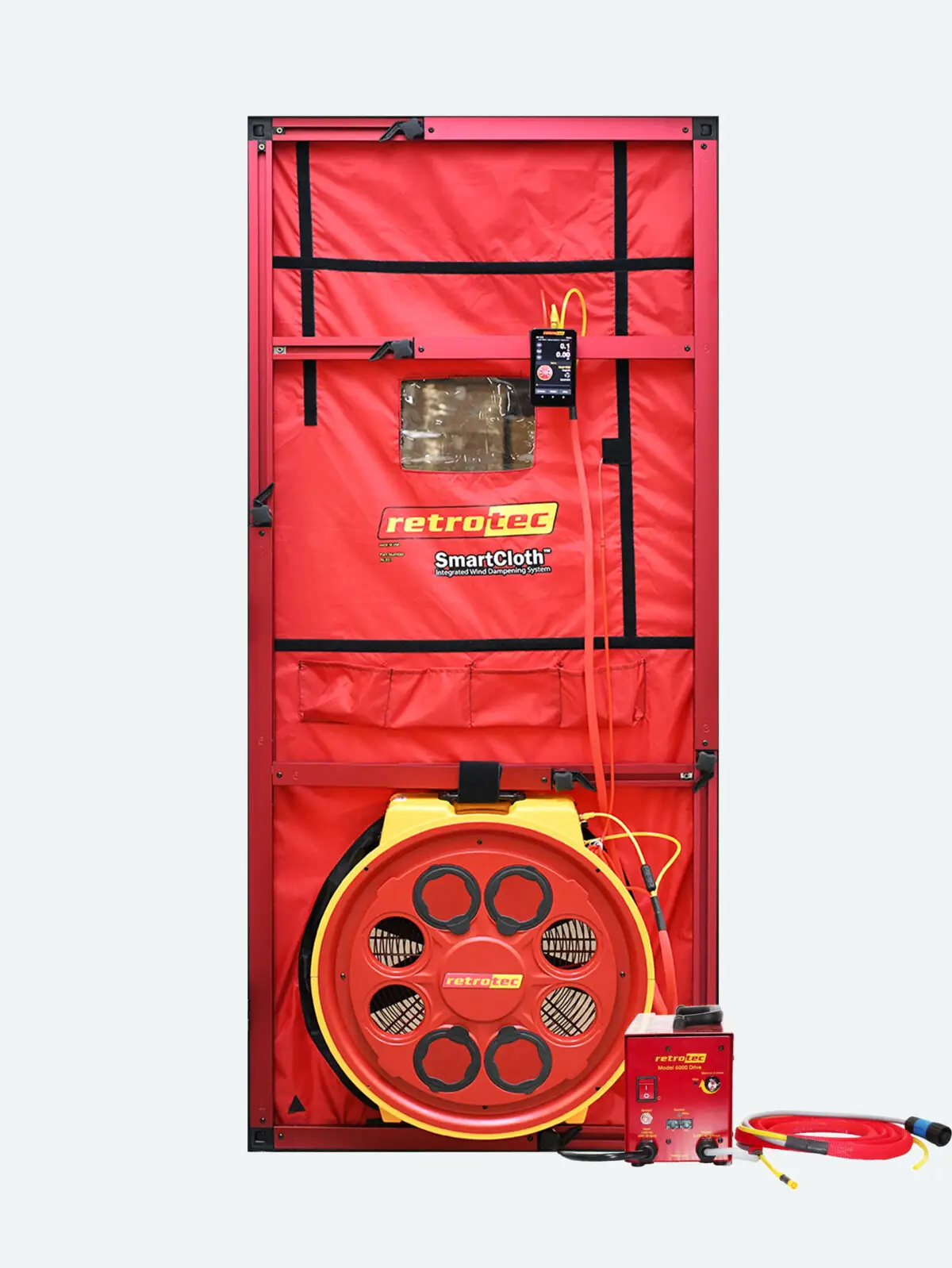

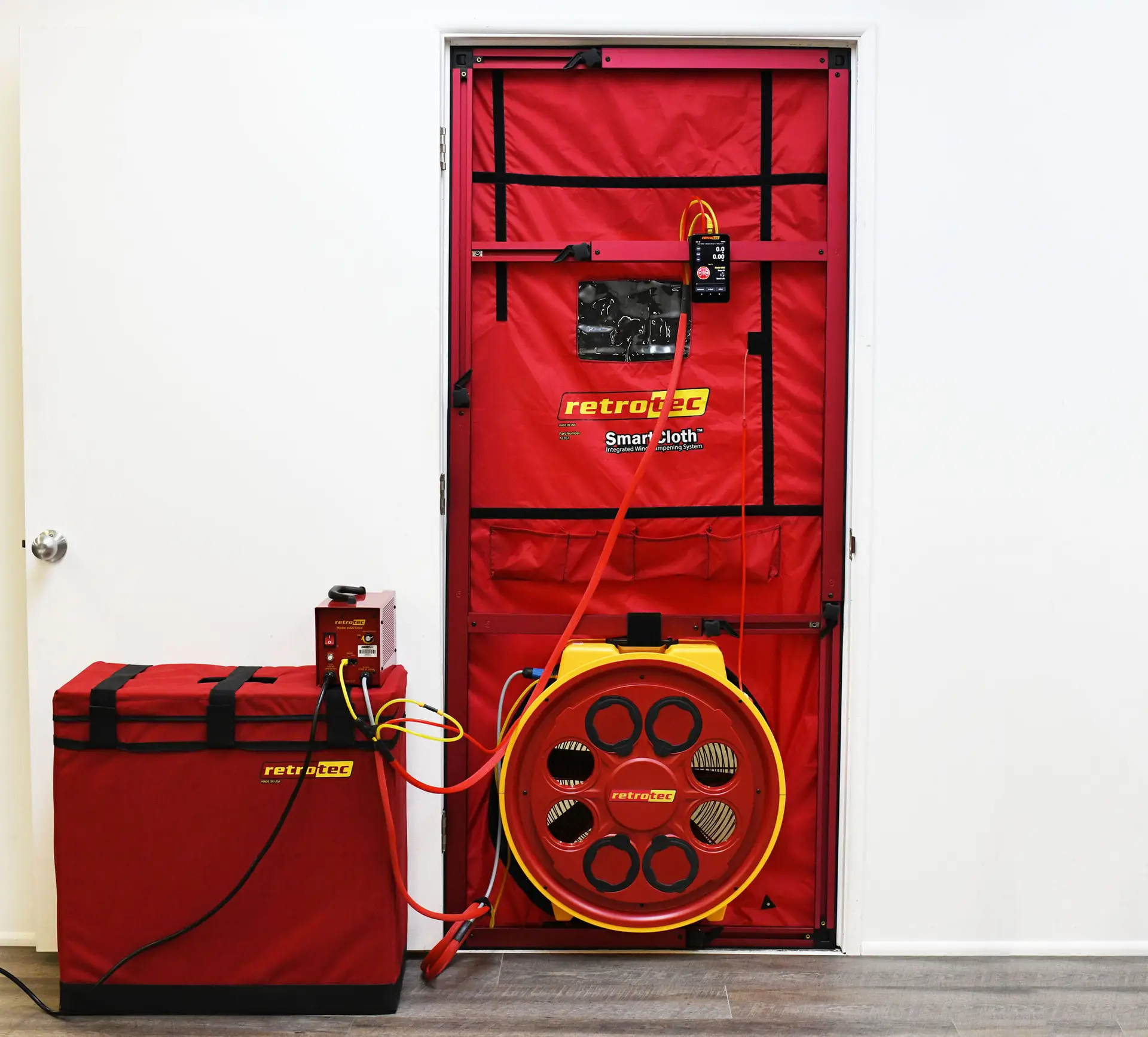

Designed for maximum flexibility and precision, the 6100 features a quick-connect frame with an extra crossbar for added stability and convenient gauge mounting. Retrotec’s SmartCloth™ is also included, providing built-in bias pressure tubing and acting as a wind-dampening tool for more reliable results.

With unparalleled power and performance, the 6100 ensures fast, accurate, and stable results for any enclosure type, all while maintaining ease of use.

Who Uses the 6100?

This powerful system is trusted by energy auditors, HVAC contractors, building contractors, remodelers, and home inspectors. Achieving precise results for high-pressure applications.

1 x 6000 Series Fan Set

6000 Series Calibrated Fan
(120V/60Hz, 240V/50Hz, or 110V/50Hz)
High Power Drive
(120V/60Hz, 240V/50Hz, or 110V/50Hz)
Range Ring A
B8 Plate
8 x Blank Range Plugs
Blower Door Tubing Kit
Tubing Umbilical
Fan Cover
Power Cord
System Calibration Verification Report

1 x SmartCloth™ Door Panel & Frame

SmartCloth™ Wind Dampening Cloth Door
Aluminum Frame, Etched with Sizing Markings
Traveling Case

1 x DM32X Gauge Package

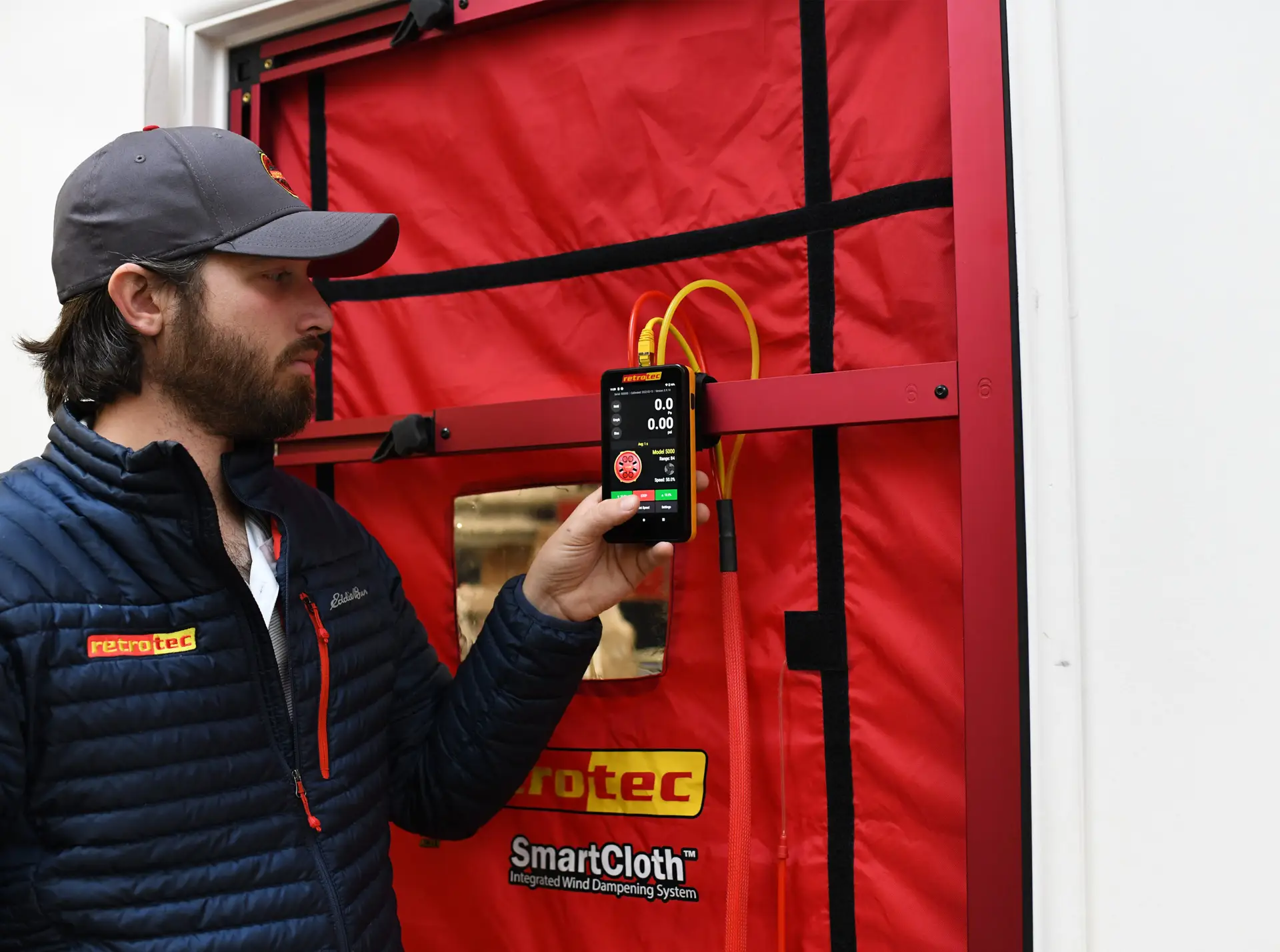

DM32X Gauge
Gauge Case
USB-C Charging Cable
Cat5 Cable
ISO17025 calibration of DM32X
Gauge Calibration Verification Report

1 x Fan Case

1 x System Accessories Case

Model 6000 Fan
	Flow Into:	CFM	Litres/sec	M3/h
Max Flow, per fan (60 Hz) Reduces values by 15% for 50Hz fan	Free Air	8,100	3,823	13,762
	50 Pa	7,700	3,634	13,082
	75 Pa	7,400	3,492	12,573
Minimum Flow:
on Included Range B1	50 Pa	95	49	161
on Optional Range 74	50 Pa	37	17	63
on Optional Range 47	50 Pa	21	10	35
on Optional Range 29	50 Pa	9	4	15
Dimensions:	22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height
Weight:	33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed
Flow Accuracy:	+/-5%
Power:	120V@60hz/22.0A or 240V@50hz/10.9A or 110V@50Hz/22.0A
Recommended Fan Calibration Interval:	5 years
Digital Gauge Model:	DM32X (Click Here)
