Exceptional Performance & Value

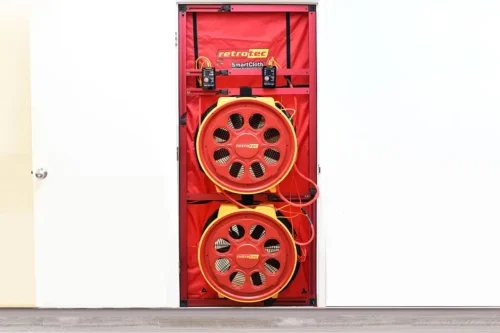

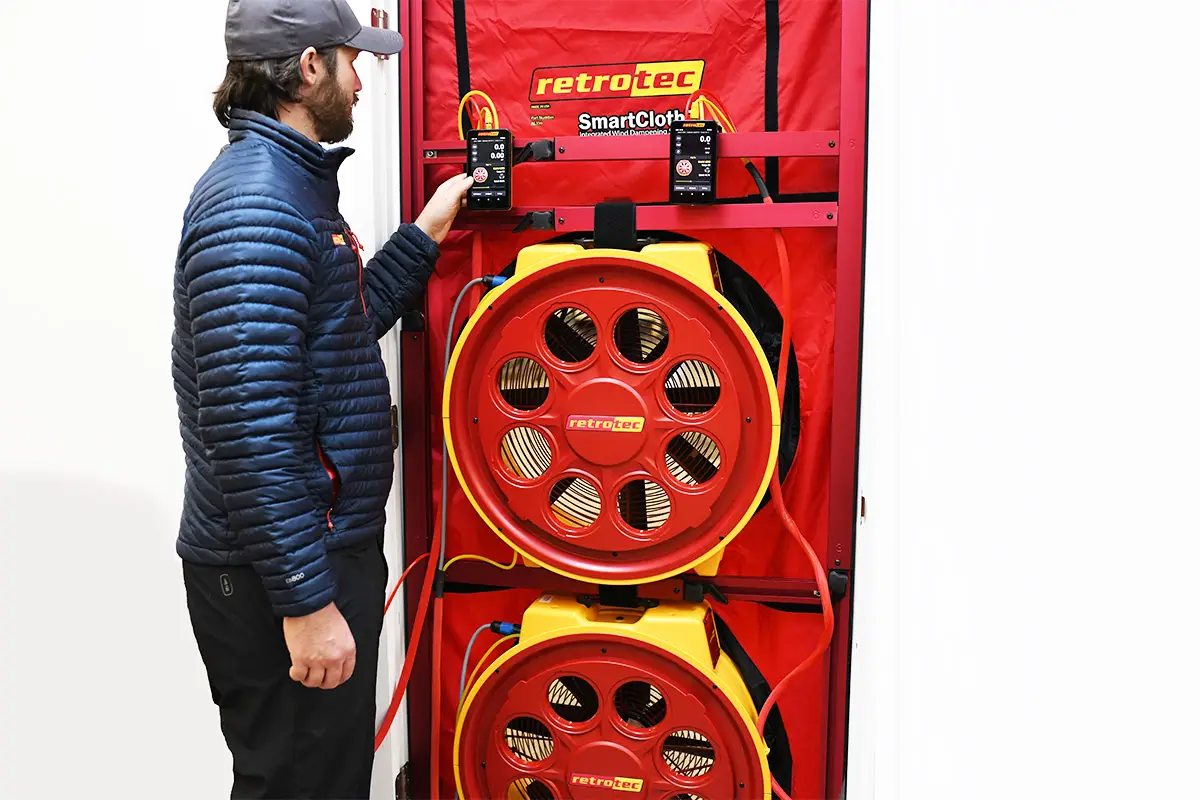

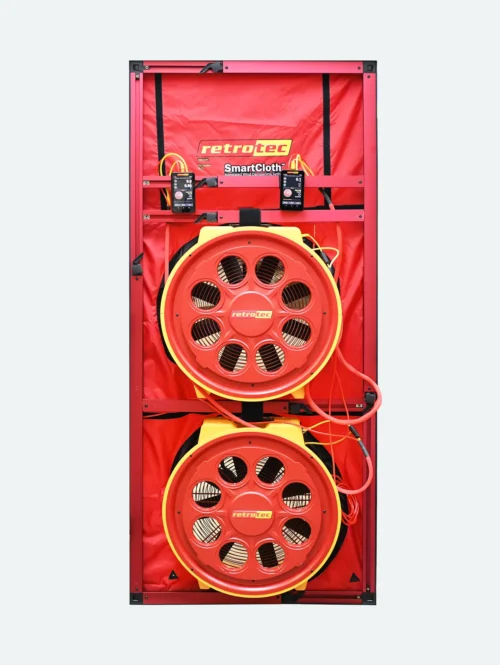

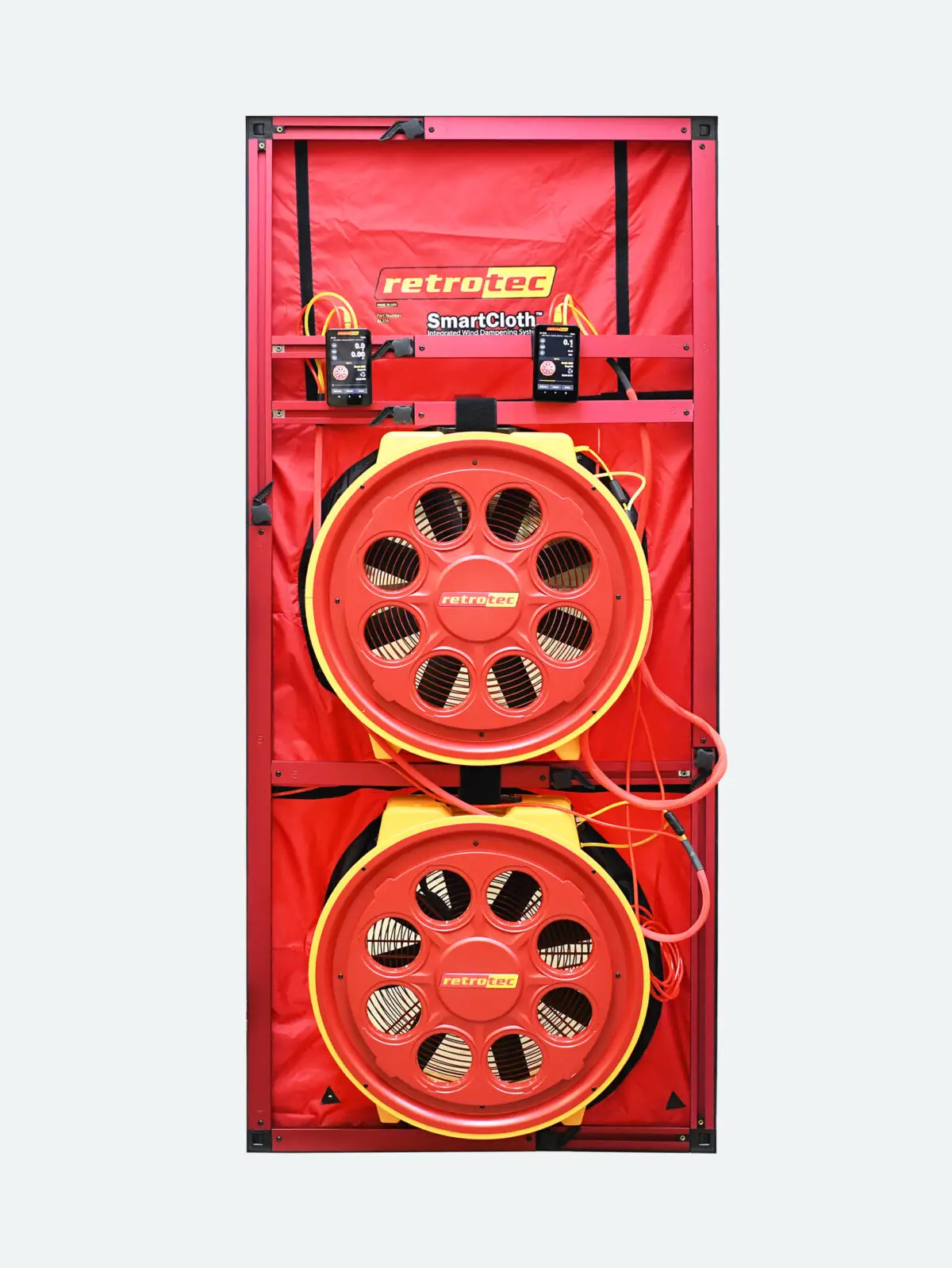

The Model 5210 can be configured into two separate Model 5100 systems with an additional single-hole cloth panel, providing flexibility for professionals. Its large aluminum frame includes three crossbars for maximum stability, securely holding two fans in a single doorway.
To top it off, the Model 5210 features the game-changing DM32X gaugeāthe industry standard for precision and usability.
Why Choose the Model 5210?
The Model 5210 is designed for professionals testing larger or leakier buildings. It effectively measures air leakage in small to medium-sized commercial or multi-family buildings. The included Large Aluminum Frame Cloth Door Panel accommodates larger-than-standard doorways, ensuring compatibility with diverse testing scenarios. With its adaptability and cost-effective design, the Model 5210 is a reliable solution for airtightness testing.
Who Uses This Model?
The Model 5210 is trusted by energy auditors, HVAC contractors, building contractors and remodelers, as well as home inspectors who rely on its performance and adaptability for airtightness testing.
2 x 5000 Series Fan Set
Each fan set contains:

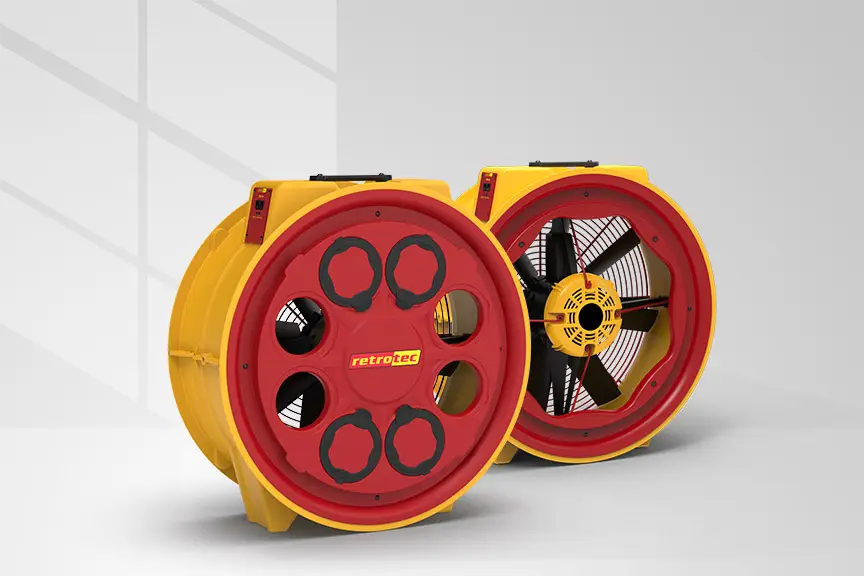

- 5000 Series Calibrated Fan
(120V/60Hz, 240V/50Hz, or 110V/50Hz) - Range Ring A
- B8 Plate
- 8 x Blank Range Plugs
- Blower Door Tubing Kit
- Tubing Umbilical
- Fan Cover
- Power Cord
- System Calibration Verification Report
1 x Large Cloth Door Panel & Frame Package – Double Fan
- Double-Hole SmartClothā¢ Wind Dampening Cloth Door
- Large SmartClothā¢ Wind Dampening Cloth Door
- Large Aluminum Frame, Etched with Sizing Markings
- Traveling Case

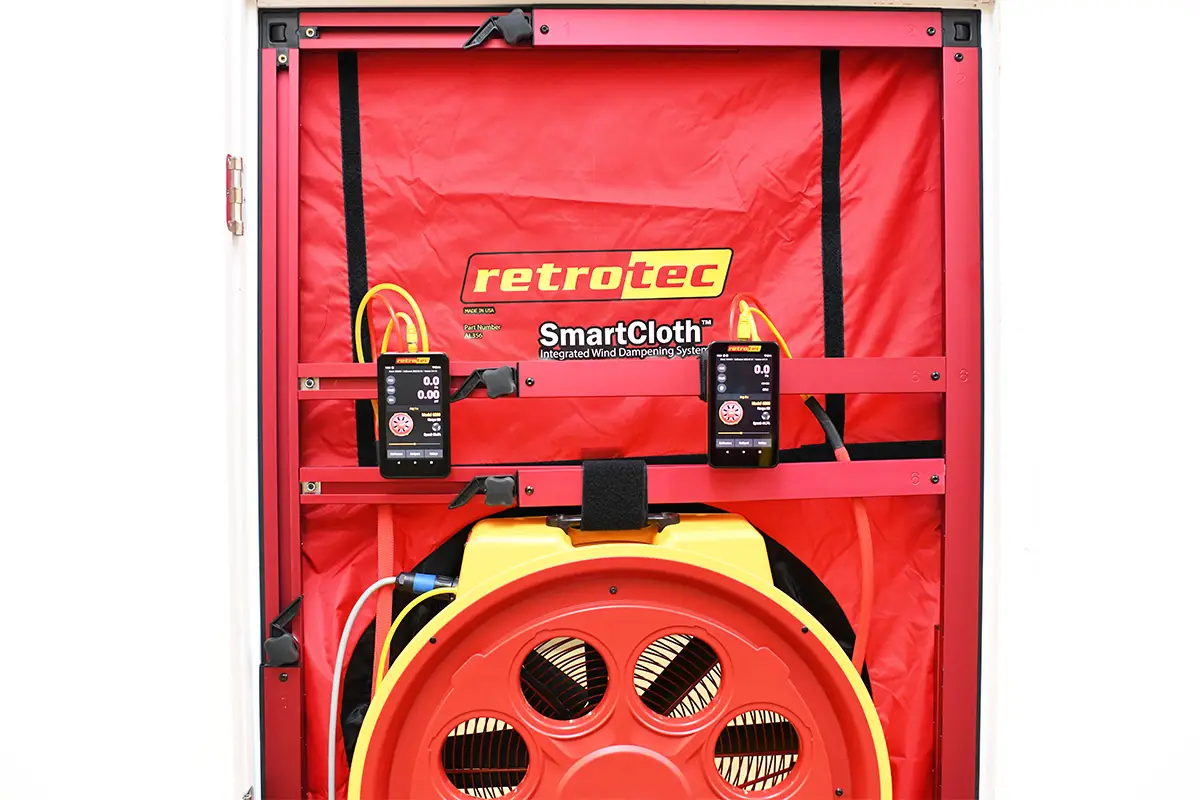

2 x DM32X Gauge Package
Each gauge set contains:
- DM32X Gauge
- Gauge Case
- USB-C Charging Cable
- Cat5 Cable
- ISO17025 calibration of DM32X
- Gauge Calibration Verification Report
1 x System Accessories Case
| Model 5000 Fan | ||||
| Flow Into: | CFM | Litres/sec | M3/h | |
| Max Flow, per fan (60 Hz)
Reduces values by 15% for 50Hz fan |
Free Air | 6,400 | 3,020 | 10,874 |
| 50 Pa | 5,700 | 2,690 | 9,684 | |
| 75 Pa | 5,400 | 2,549 | 9,175 | |
| Minimum Flow: | Ā | |||
| on Included Range B1 | 50 Pa | 111 | 52 | 188 |
| on Optional Range 74 | 50 Pa | 37 | 17 | 63 |
| on Optional Range 47 | 50 Pa | 21 | 10 | 35 |
| on Optional Range 29 | 50 Pa | 9 | 4 | 15 |
| Dimensions: | 22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height | |||
| Weight: | 33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed | |||
| Flow Accuracy: | +/-5% | |||
| Power: | 120V@60hz/11A or 240V@50hz/4.9A or 110V@50Hz/ 8.9A | |||
| Recommended Fan Calibration Interval: | 5 years | |||
| Digital Gauge Model: | DM32X (Click Here) | |||
Manuals
- Manual- Blower Door Operation for Model 300 5000 6000 7000
- Manual- Residential Pressure & Air Leakage Testing
- Manual- Blower Door Multiple Fan Operation for Model 300 5000 6000 7000
QuickGuides
- QuickGuide- Blower Door with DM32X for Model 300 5000 6000 7000
- QuickGuide- Blower Door with DM32 for Model 5000 6000
- QuickGuide- Cloth Door Panel
- QuickGuide- Blower Door Range Configuration for 5000 6000
MoreĀ
