5120F Fire Systems | Clean Agent Enclosure Integrity

Product code: 5120F

Model 5120F Fire [Enclosure Integrity]

Price range: $9,350.00 through $9,870.00

Voltage

Calibration

Clear

Software Options

Training - Enclosure Integrity

Optional 5 Year Extended Warranty

Overview Features
Included Items
Tech Specs
Manuals & Guides

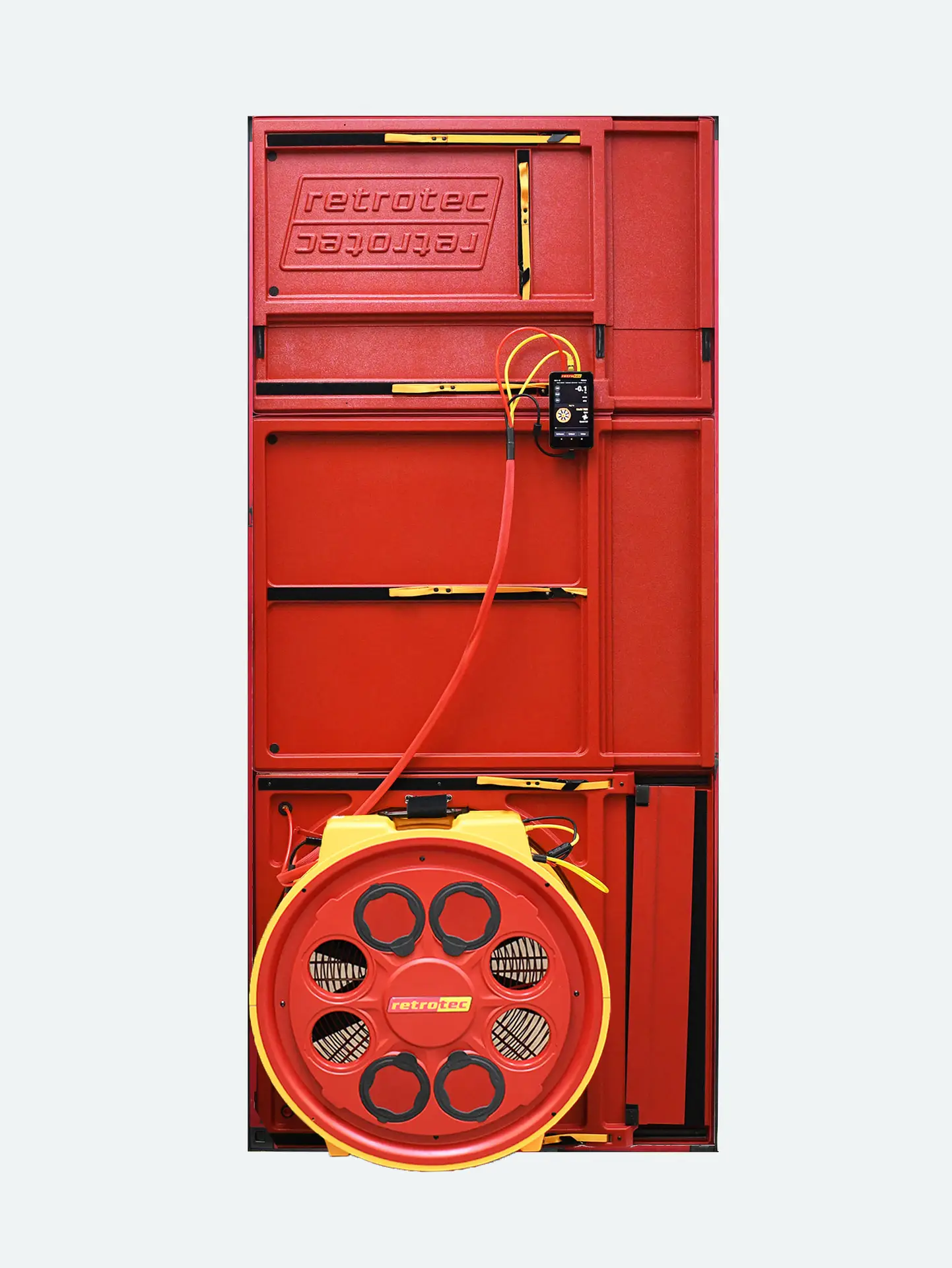

Model 5120F with Hard Panel

The Model 5120F with Hard Panel delivers the same reliable performance as the Model 5100F cloth panel system but includes modular hard panels for a quick setup and a professional appearance. Designed for efficiency and durability, this system enhances testing operations with a sturdy and adaptable framework.

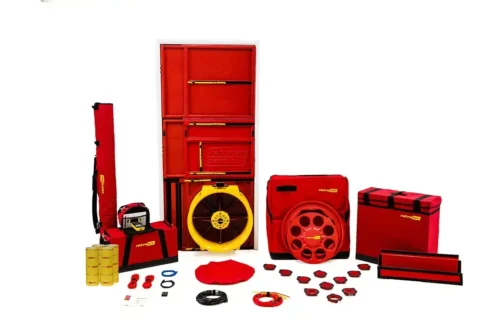

This package includes a fan case, tool case, and a large aluminum frame with a cloth panel, ensuring secure setups in tight enclosures. It also features the newly released, industry-changing DM32X gauge, providing precision and ease of use for enclosure integrity testing.

Why Choose Retrotec for Enclosure Integrity Testing?

Retrotec pioneered the concept of Enclosure Integrity testing in 1984 and has remained the industry leader ever since. By promoting it within NFPA and authoring the first Enclosure Integrity standard in 1986, Retrotec set the foundation for modern testing methods. As the leading researcher in enclosure testing, Retrotec provides unparalleled expertise, with every major clean agent system manufacturer worldwide relying on its technology for hold time and peak pressure predictions. All Retrotec systems come with expert technical support, ensuring professionals have the guidance they need for accurate and efficient testing.

1 x 5000 Series Fan Set

5000 Series Calibrated Fan
(120V/60Hz, 240V/50Hz, or 110V/50Hz)
Range Ring A
B8 Plate
8 x Blank Range Plugs
Blower Door Tubing Kit
Tubing Umbilical
Fan Cover
Power Cord
System Calibration Verification Report

1 x Hard Panel Set

1 x Large SmartCloth™ Door Panel & Frame

Large SmartCloth™ Wind Dampening Cloth Door
Large Aluminum Frame, Etched with Sizing Markings

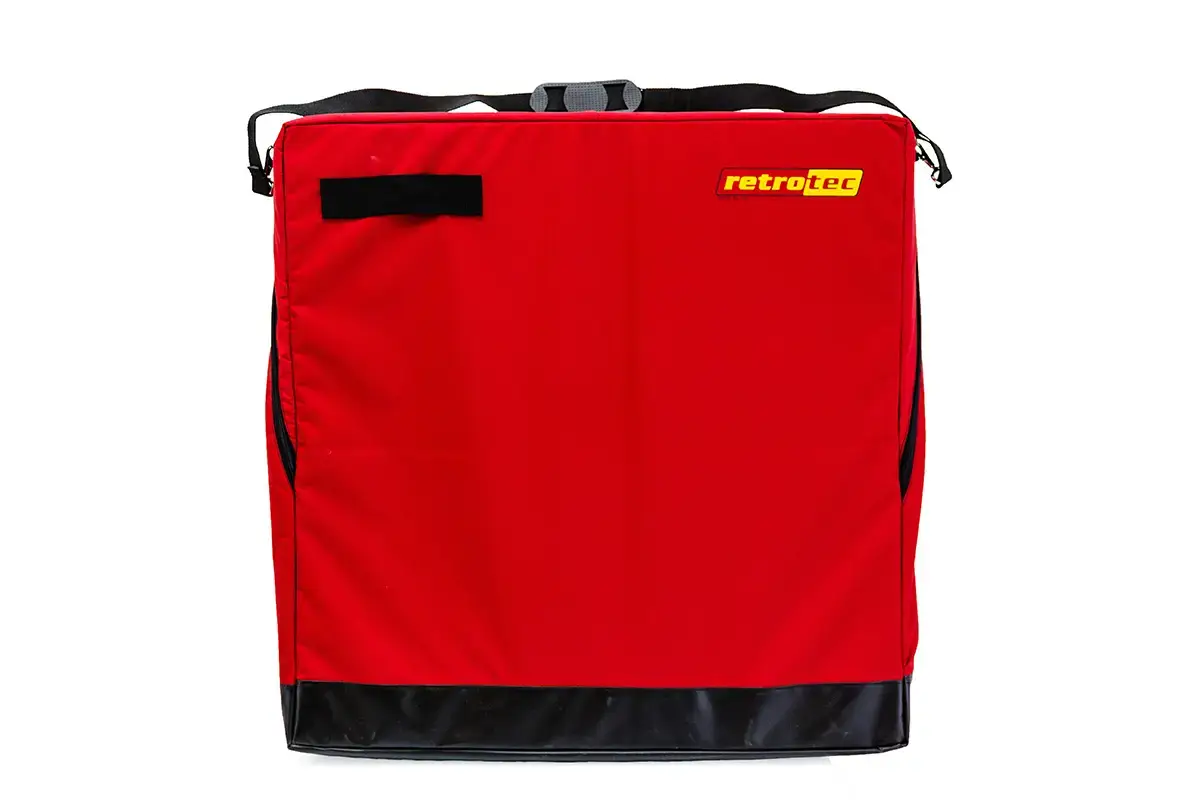

Traveling Case

1 x DM32X Gauge Package

DM32X Gauge
Gauge Case
USB-C Charging Cable
Cat5 Cable
ISO17025 calibration of DM32X
Gauge Calibration Verification Report

1 x System Accessories Case

1 x Fan Case

4 x Roll of Grill Masks

Model 5000 Fan
	Flow Into:	CFM	Litres/sec	M3/h
Max Flow, per fan (60 Hz) Reduces values by 15% for 50Hz fan	Free Air	6,400	3,020	10,874
	50 Pa	5,700	2,690	9,684
	75 Pa	5,400	2,549	9,175
Minimum Flow:
on Included Range B1	50 Pa	111	52	188
on Optional Range 74	50 Pa	37	17	63
on Optional Range 47	50 Pa	21	10	35
on Optional Range 29	50 Pa	9	4	15
Dimensions:	22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height
Weight:	33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed
Flow Accuracy:	+/-5%
Power:	120V@60hz/11A or 240V@50hz/4.9A or 110V@50Hz/ 8.9A
Recommended Fan Calibration Interval:	5 years
Digital Gauge Model:	DM32X (Click Here)
